Metal Chip & Oil Vacuums
ECO-OIL 13N1M
Product number: 4010400003
Separate solids and fluids with 1.46 kW single-phase power

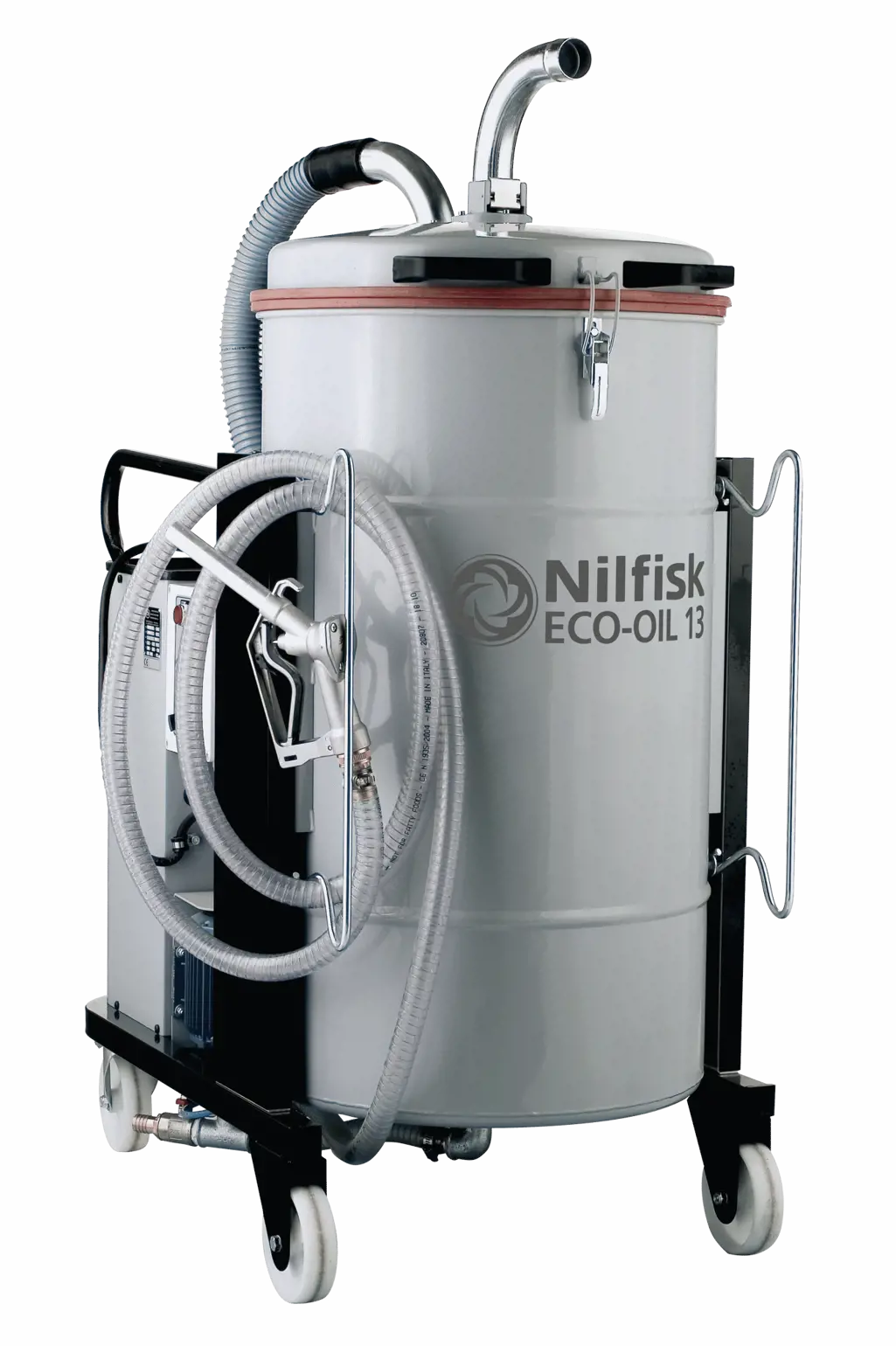

ECO-OIL 13N1M
Collect cutting oil or coolant mixed with metal chips or other swarfs, separate liquids from solids and re-use the filtered liquid!
Specifications for ECO-OIL 13N1M
Voltage at 60 Hz (V)120
Rated power (KW)1.46
Sound pressure level (dB(A))70
Tank capacity (Gal / l)48 - 180
Swarf container capacity (L)8 - 30
Waterlift, max. (Inches H2O)131
Machine Inlet (Inches)2
Dimensions, L x W x H (Inches)42x26.5x59
Weight (lbs)265
Current draw, rated (A)14.1
Max. airflow rate (cfm)105
Different variants of ECO-OIL 13N1M
Below you can see the different variants of the product
Brochures & documents for
Download print and video material to learn more
Get a quote, info or help
Your selection
Accessories for ECO-OIL 13N1M
Complete range of accessories
Cone Nozzle
CONIC TUBE D50 ANTISTATIC COMPONENT ATEX
Product number: 40000221
Cone Nozzle
CONIC TUBE D50 RUBBER
Product number: Z7 21010
Extension Tube
HANDGRIP D50 ALUMINIUM COMPLETE
Product number: Z7 22025
Extension Tube
HANDGRIP D50 INOX COMPLETE
Product number: 40000222
Nozzle
MOBILE NOZZLE D50 MM400 INOX COMPLETE
Product number: 40000223
Vacuum Hose and Connection
BENT CONNECTION D50 FE
Product number: Z7 21012
Vacuum Hose and Connection
BENT CONNECTION D50 INOX
Product number: Z7 21034
Vacuum Hose and Connection
CONNECTION JOINT D50 FE
Product number: Z7 21002
Vacuum Hose and Connection
CONNECTION JOINT D50 INOX
Product number: Z7 22241
