Vacuum Cleaners for Food Industry Systems

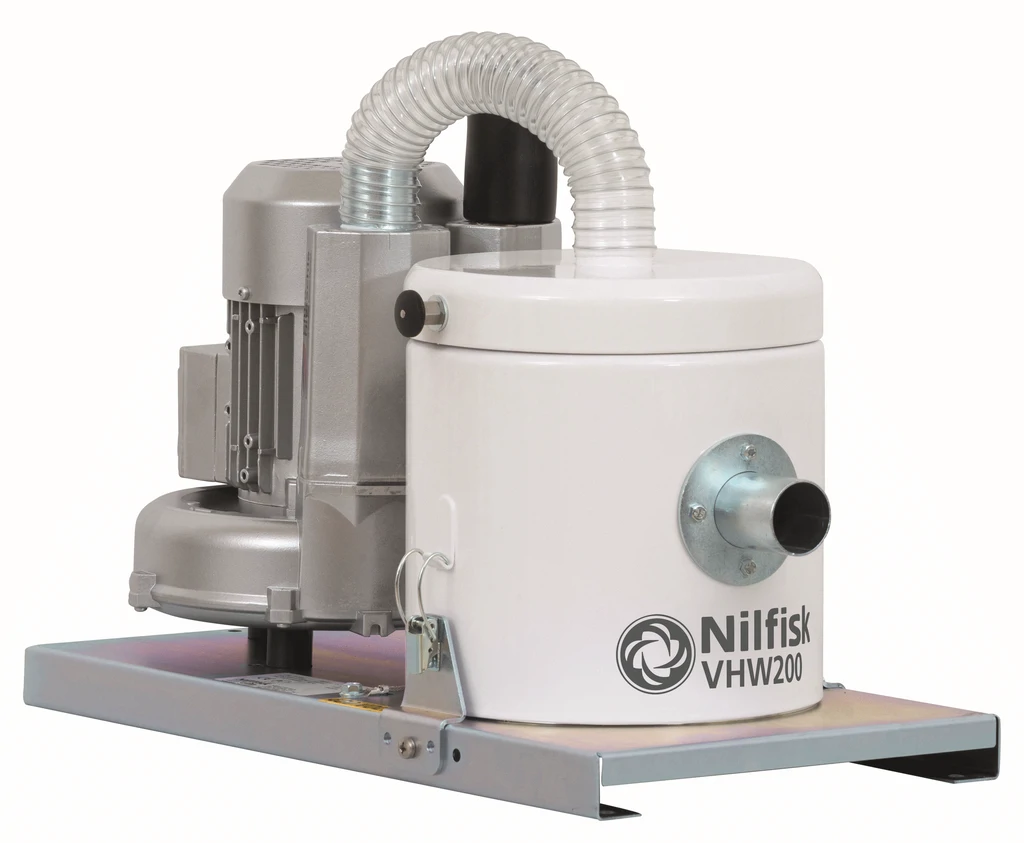

VHW200N4
Product number: 4041100468
The most compact continuous duty vacuum for automated applications
VHW200N4
The VHW200 has a tiny 21x11 inch foot print to easily fit wherever space is at a premium. Ideal for automated systems, the VHW200 can be hard-wired to process machine to provide suction for a variety of applications. Maintenance and clean-up is extremely easy with a removable top cover to access the main filter without direct contact with the debris.
Specifications for VHW200N4
Voltage 1-phase (V)120/230
Voltage 3-phase (V)220/460/575
Ip protection class55
Insulation classF
Rated power (KW)0.45
Sound pressure level (dB(A))56
Tank capacity (Gal / l)0.26 / 1
Waterlift, Controlled, 1-Ph (Inches H2O)52
Waterlift, Controlled, 3-Ph (Inches H2O)60
Filter area, main (ft²)2.48
Filter area, optional HEPA (ft²)11.84
Inlet (MM)40
Dimensions, L x W x H (Inches)19.5x20.9x10.6
Weight (lbs)37.5
Max. airflow rate (cfm)58
