Industrial vacuums for the food industry, pharma industry, and OEMs
VHW420 IC 5PP
Product number: 4041200555
The best for automated applications
_MD-ps-Original-CNTUHF.webp?width=768&rxy=0.5%2c0.5&format=webp)
_MD-ps-Original-CNTUNK.webp?width=768&rxy=0.5%2c0.5&format=webp)
_MD-ps-Original-CNTUHF.webp?width=768&height=768&rxy=0.5%2c0.5&format=webp)
_MD-ps-Original-CNTUNK.webp?width=768&height=768&rxy=0.5%2c0.5&format=webp)

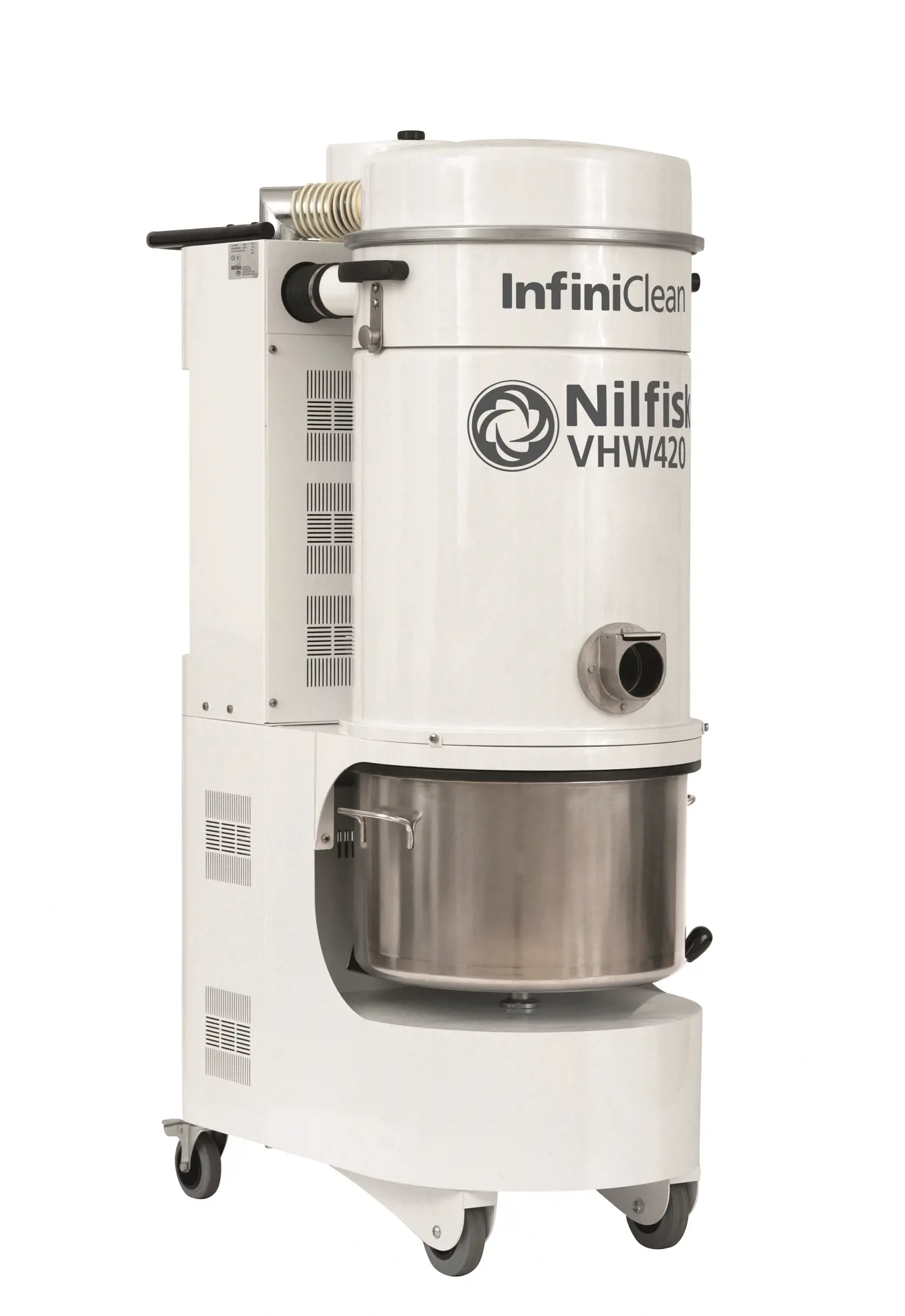

VHW420 IC 5PP
The new industrial vacuum designed to ensure the highest perfomances in fully automated applications operating 24/7.
Specifications for VHW420 IC 5PP
Voltage (V)400
Frequency (Hz)50
IP protection class55
Insulation classF
Rated power (kW)2.2
Max. airflow (m³/h - l/min.)306 - 5100
Max. vacuum (kPa - mbar)19 - 190
Sound pressure level (dB(A))63
Container capacity (l)46
Main filter typeM CLASS CONDUCTIVE CARTRIDGES FILTER
Main filter area (cm²)25000
Downstream HEPA filter H14 (if present) (cm²)-
Inlet (mm)70
Length x width x height (mm)540x970x1560
Weight (kg)133
Different variants of VHW420 IC 5PP
Below you can see the different variants of the product
CO2 emissions for “VHW420 IC 5PP”
Estimate your annual CO2 footprint based on weekly usage.
0 kg
CO2 per year
8496948.ihtml?token=d6f43213d7e895c7c48637a303c4bb5e&photo_id=8496948]]>
Brochures & documents for
Download print and video material to learn more
Contact Us
Your selection
Accessories for VHW420 IC 5PP
Complete range of accessories
Tech install
Hose Vacuum Cleaner
F_NON TOXIC ANTISTAT HOSE D40 IN METERS
Product number: Z7 24028
Tech install
Hose Vacuum Cleaner
F_NON TOXIC ANTISTAT HOSE D50 IN METERS
Product number: Z7 24029
Tech install
Hose Vacuum Cleaner
F_NON TOXIC ANTISTAT HOSE D70 IN METERS
Product number: Z7 24030
Tech install
Hose Vacuum Cleaner
FLOWING PTFE SLEEVE D40
Product number: Z7 20327
Tech install
Hose Vacuum Cleaner
FLOWING PTFE SLEEVE D50
Product number: Z7 20326
Tech install
Hose Vacuum Cleaner
HIGH TEMPERATURE HOSE D40 BY METER
Product number: 4072400330
Tech install
Hose Vacuum Cleaner
HIGH TEMPERATURE HOSE D50 BY METER
Product number: 4072400331
Tech install
Hose Vacuum Cleaner
HOSE FDA D40 3M + SLEEVES
Product number: 4072400334
Tech install
Hose Vacuum Cleaner
HOSE FDA D40 5M + SLEEVES
Product number: 4072400336
